วาล์วควบคุมระบบน้ำ Bermad
รุ่น Level Control Valve ผลิตภัณฑ์ที่ได้รับการยอมรับจากทั่วโลก
Level Control Valve
Hydraulically operated control valve that controls reservoir filling and reservoir level. Reservoir filling is in response to a hydraulically controlled non-modulating bi-level vertical float that opens at a pre-set reservoir low level and shuts off drip-tight at a pre-set high level. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards
เยี่ยมชมเว็บไซต์ได้ที่ www.bermad.com
Level Control Valve
Hydraulically operated control valve that controls reservoir filling and reservoir level. The valve shuts off at a pre-set reservoir high level and fully opens in response to an approximately one meter (3 ft) level drop, as sensed by the 3-Way altitude pilot mounted on the main valve. BERMAD 700 SIGMA EN/ES series valves are hydraulic, oblique pattern, globe valves with a raised seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valves hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The valves are available in the standard configuration or with an Independent Check Feature code “2S”. The 700 SIGMA EN/ES Valves operate under difficult operation conditions with minimal cavitation and noise. They meet size and dimensions requirements of various standards.
เยี่ยมชมเว็บไซต์ได้ที่ www.bermad.com
หากต้องการสินค้าด่วน หรือต้องการขอราคาพร้อมส่วนลดพิเศษ ติดต่อได้ที่
Line : @uhmgroup โทร : 02-251-8300
Typical Installation

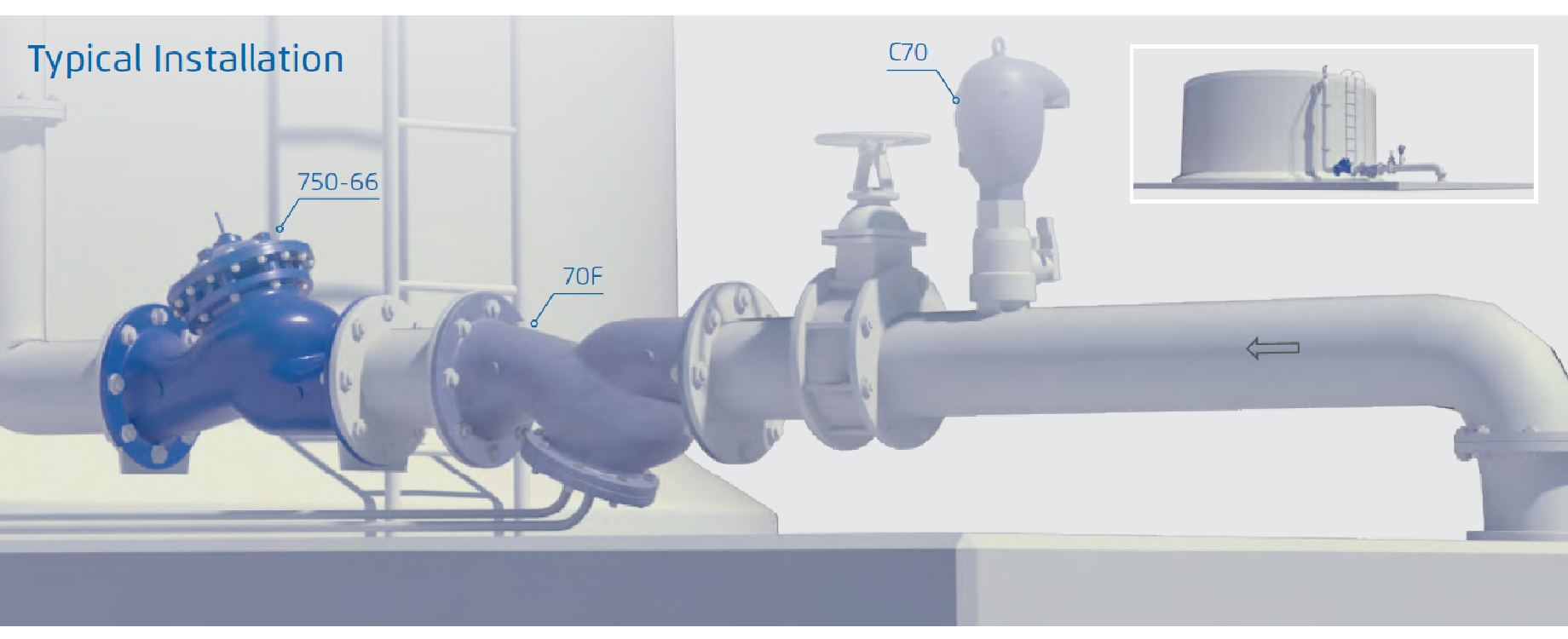

Typical Installation for Level Control Valve with Bi-Level Vertical Float Model 750-66
Typical Installation

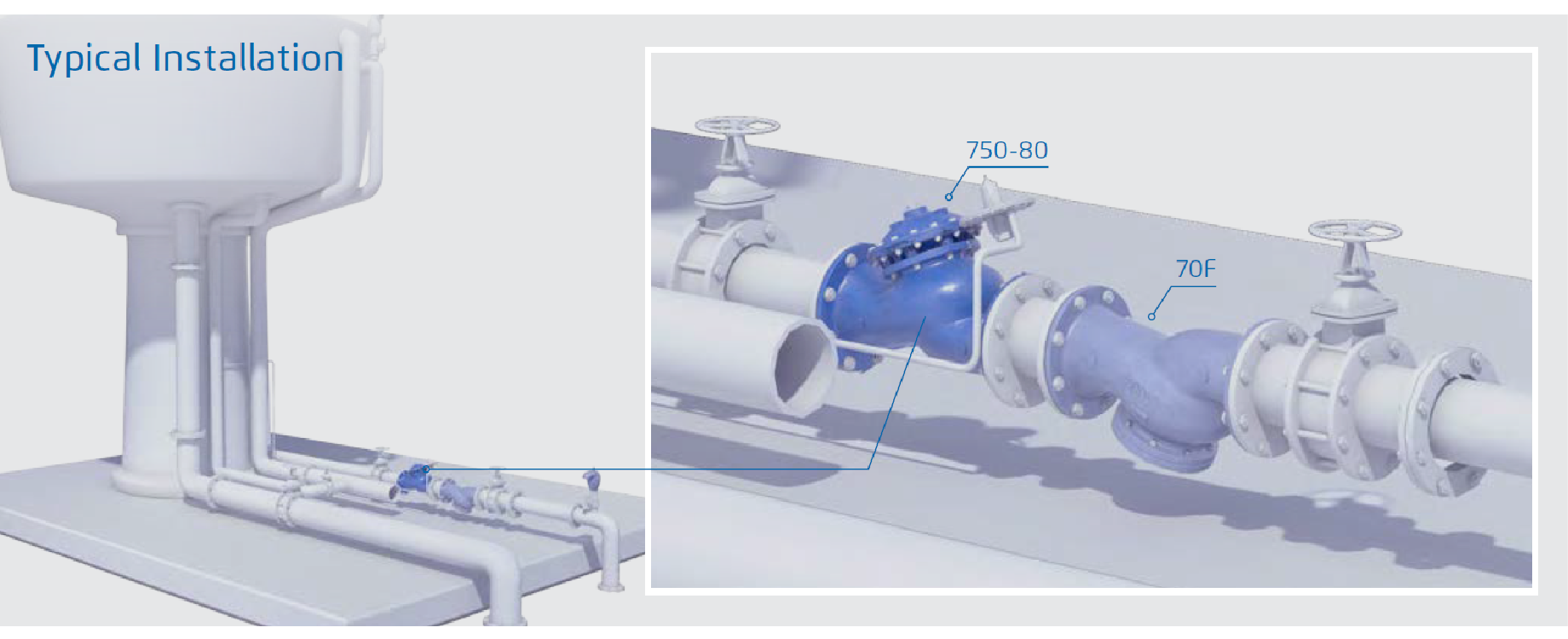

Typical Installation for Level Control Valve with Altitude Pilot Model 750-80
ดาวน์โหลดเอกสาร
แคตตาล็อก Level Control Valve Model 750-66
แคตตาล็อก Level Control Valve Model 750-80
